ospfv3 w/rip...

from: http://www.cisco.com/en/US/tech/tk872/technologies_configuration_example09186a0080b40d8a.shtml

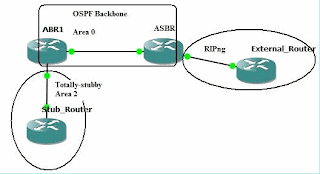

if i'm not mistaken the below diagram is gns3...

that is somehow significant...

r1

ipv6 unicast-routing
ipv6 cef

interface Serial2/0
 no ip address
 ipv6 address 2001:ABAB::/64 eui-64
 ipv6 enable
 ipv6 ospf 1 area 2
 serial restart-delay 0
 clock rate 128000

ipv6 router ospf 1
 router-id 3.3.3.3
 area 2 stub

r2

ipv6 unicast-routing
ipv6 cef

interface FastEthernet0/0
 no ip address
 speed auto
 duplex auto
 ipv6 address 2003::1/124
 ipv6 enable
 ipv6 ospf 1 area 0


interface Serial2/0
 no ip address
 ipv6 address 2002:ABAB::/64 eui-64
 ipv6 enable
 ipv6 ospf 1 area 2
 serial restart-delay 0

ipv6 router ospf 1
 router-id 1.1.1.1
 area 2 stub no-summary

r3


ipv6 unicast-routing
ipv6 cef

interface FastEthernet0/0
 no ip address
 speed auto
 duplex auto
 ipv6 address 2003::2/124
 ipv6 enable
 ipv6 ospf 1 area 0

interface Serial2/1
 no ip address
 ipv6 address 2003::1:1/124
 ipv6 enable
 ipv6 rip ext enable
 serial restart-delay 0

ipv6 router ospf 1
 router-id 2.2.2.2
 default-metric 25
 redistribute rip ext metric-type 1 include-connected
!
ipv6 router rip ext
 redistribute ospf 1 match internal external 1 external 2 include-connected

r4

ipv6 unicast-routing
ipv6 cef

interface Loopback0
 no ip address
 ipv6 address 2004:ABAB::/64 eui-64
 ipv6 enable
 ipv6 rip ext enable

interface Serial2/1
 no ip address
 ipv6 address 2003::1:2/124
 ipv6 enable
 ipv6 rip ext enable
 serial restart-delay 0

ipv6 router rip ext
